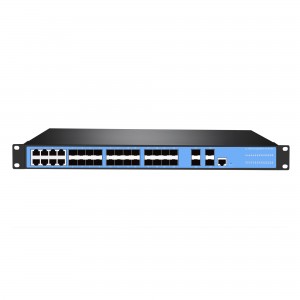

36-port 10G Uplink L3 Managed Ethernet Switch 4-Port 1/10G SFP 24-Port 100/1000Base-X SFP 8-Port 10/100/1000Base-T RJ45 combo

36-port 10G Uplink L3 Managed Ethernet Switch 4-Port 1/10G SFP 24-Port 100/1000Base-X SFP 8-Port 10/100/1000Base-T RJ45 combo

Product Features：

Gigabit access, 10G uplink

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

◇ Supports Gigabit Ethernet port and 10G SFP+ uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

 Security

◇ Support port isolation.

◇ Support port broadcast storm suppression.

◇ Support IP+MAC+port+VLAN quadruple flexible combination binding function.

◇ Support 802. 1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.

 Strong business processing capability

◇ Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.

◇ Support IEEE802. 1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.

◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

◇ Support QoS, port-based, 802. 1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

◇ Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.

 Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Low power consumption, No fan, Steel alloy shell.

◇ The user-friendly panel can show the device status through the LED indicator of PWR,Link.

◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.

 Easy operation and maintenance management

◇ Support CPU monitoring, memory monitoring, Ping detection, cable length detection.

◇ Support HTTPS, SSLV3, SSHV1/V2 and other encryption methods, making management more secure.

◇ Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.

◇Support LLDP to facilitate the network management system to query and judge the communication status of the link.

◇Support Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3) and other diversified management and maintenance.

Technical Parameter：

Product Size:

product application diagra：

Q&A：

What are your prices?

Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

  Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website.

Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

What is the average lead time?

For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal:
30% deposit in advance, 70% balance against the copy of B/L.

What is the product warranty?

We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction

Do you guarantee safe and secure delivery of products?

Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

How about the shipping fees?

The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
